HCA526T-WL wireless transmission dual-axis tilt sensor wireless data reception

Model Number : HCA526T-WL

Place of Origin : Guangdong, China

Brand Name : RION

Packaging Details : 1pcs/box ,100pcs/ctn

Supply Ability : 30000 Piece/Pieces per Month

Price : $450.00/Pieces

MOQ : 1

Certification : CE

Measure axis : XY

Measure range : 10°~90°

Power on time : 0.5s

Output rate : 5Hz、15Hz、35Hz、50Hz

output signal : RS232/RS485/RS422/TTL/CAN/MODBUS

Protection grade : IP67

Input voltage : 9~36v

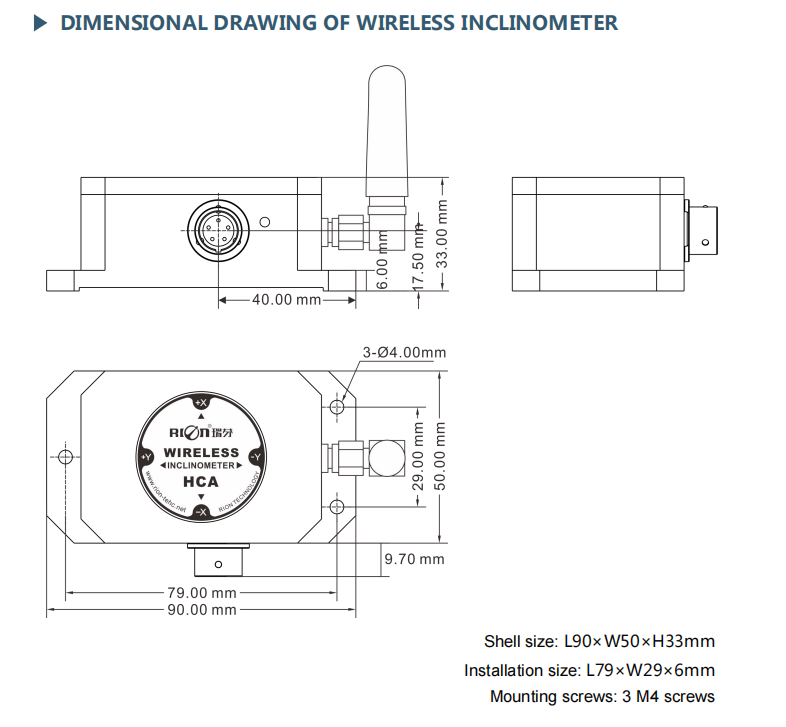

Small size : 90×50×34mm（customized）

Contact Now

HCA526T-WL wireless transmission dual-axis tilt sensor wireless data reception​

PRODUCT INTRODUCTION:

HCA526T-WL is a wireless transmission dual-axis tilt sensor launched by RION for the industrial field control field. The product is divided into two parts: wireless induction probe and wireless data reception. Both parts have independent receiving antennas. The wireless ISM full-band working frequency is adopted, which conforms to the ISM band communication standard and does not need to apply for frequency points. Carrier frequency is within 400-480MHZ. The communication distance can reach 200 meters in the visible open area. The GFSK modulation mode adopts a high-efficiency forward error correction channel coding technology, and improves the capability of data for resisting burst interference and random interference.

Features

  • Wide temperature working: -40~+85℃
  • Resolution: 0.001°
  • Water-proof air-plug connector
  • IP67 protection class
  • Highly anti-vibration performance >2000g

Application:

  • Railway gauge and gauge leveling
  • Precision machine tool level control
  • Geological equipment tilt monitoring
  • Bridge and large monitoring
  • Directional satellite communication antenna elevation measurement

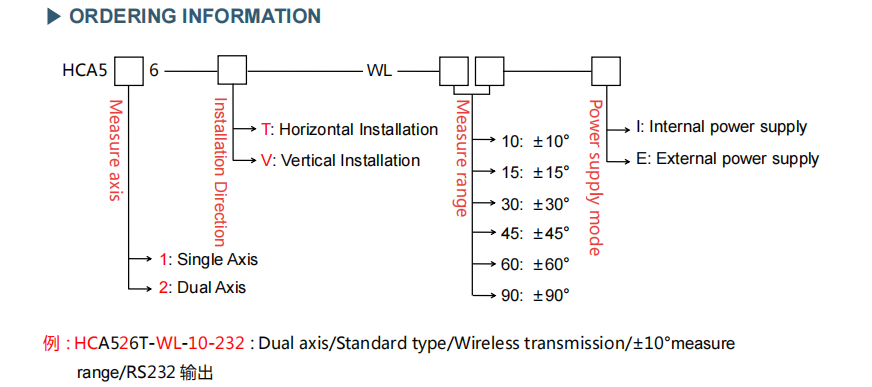

Ordering information:

HCA516&526T-WL CONDITION PARAMETERS UNIT
Measure range ±10 ±30 ±60 ±90 °
Measure axis XY XY XY XY
Resolution 0.001 0.001 0.001 0.001 °
Measure accuracy 0.005 0.01 0.02 0.05 °
Long term stability 0.01 0.02 0.05 0.08
Zero Temp.coefficient -40～85° ±0.002 ±0.002 ±0.002 ±0.002 °/℃
Sensitivity temp.coefficient -40～85° ≤50 ≤50 ≤50 ≤100 ppm/℃
Power on time 0.5 0.5 0.5 0.5 S
Response frequency 0.02 0.02 0.02 0.02 s
Output rate 5Hz,15Hz,35Hz,50Hz可设置
output signal RS232/RS485/RS422/TTL/CAN/MODBUS
EMC According to EN61000 and GBT17626
MTBF ≥50000hours/times
Insulation Resistance ≥100MΩ
Shockproof 100g@11ms,3 Axial Direction (Half Sinusoid)
Anti-vibration 10grms,10～1000Hz
Protection grade IP67
Cables Standard 1 meter length, wear-resistant, wide temperature, shielded cable 4 * 0.4mm2 aviation connector
Weight 150g(without cable)


HCA526T-WL wireless transmission dual-axis tilt sensor wireless data reception

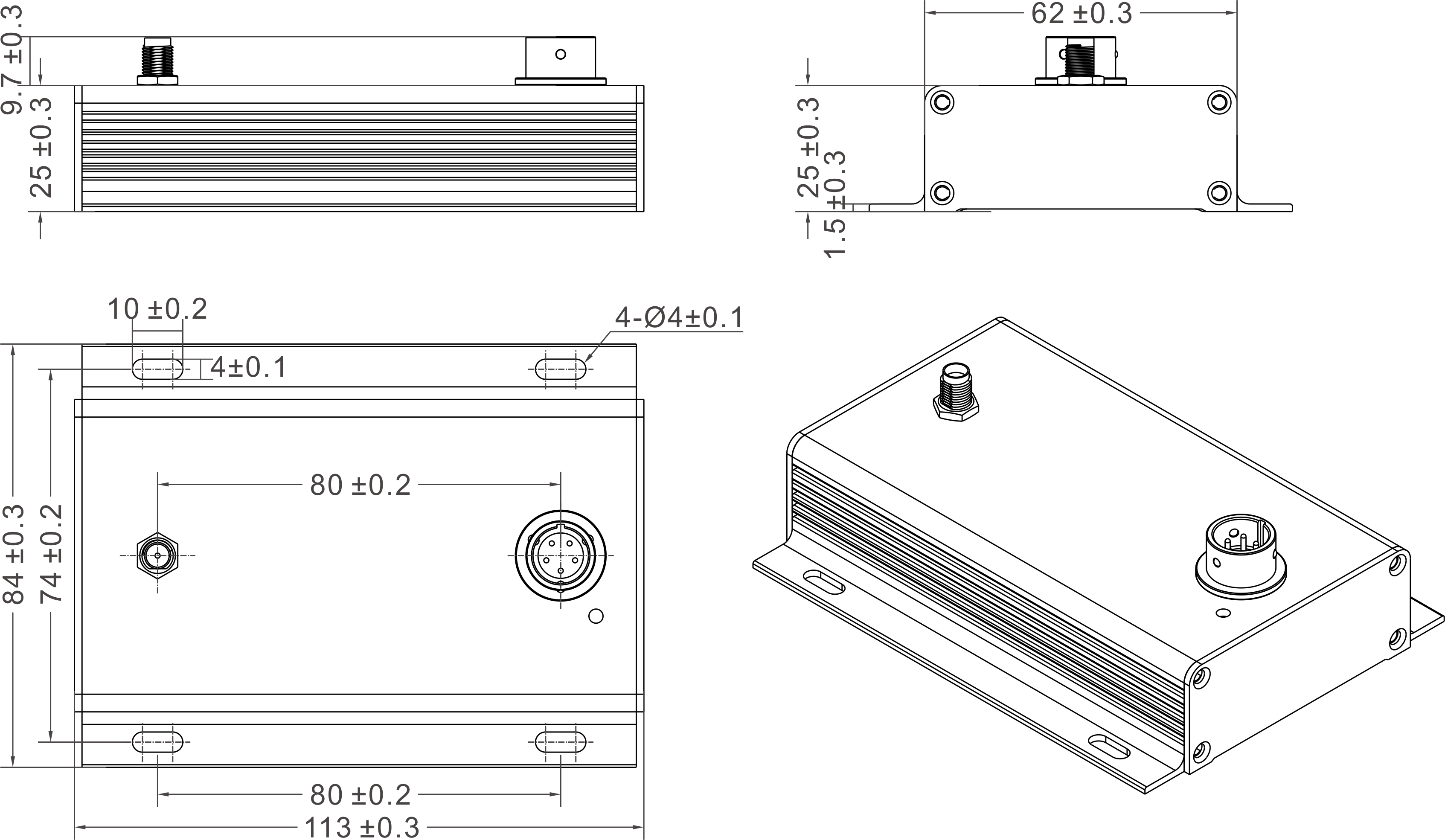

Wireless receiver size diagram

HCA526T-WL wireless transmission dual-axis tilt sensor wireless data reception

HCA526T-WL wireless transmission dual-axis tilt sensor wireless data reception
