ROV Underwater Robot High Precision 3D Electrornic Compass Sensor NMEA 0183 Protocol

Name: ROV Underwater Robot High Precision 3D Electrornic Compass Sensor NMEA 0183 Protocol
Brand: RION
Price: 430.00 USD

ROV Underwater Robot High Precision 3D Electrornic Compass Sensor NMEA 0183 Protocol Manufactures

Brand Name : RION

Model Number : HCM375B-232

Certification : CE, ISO

Place of Origin : Guangdong, China

MOQ : 1 Unit

Price : $430.00

Payment Terms : T/T, Paypal

Supply Ability : 1000 pcs per month

Delivery Time : 7 days for sample

Packaging Details : 1pcs digital compass in each inner box , 200pcs /ctn

Heading Accuracy : 0.5°

Roll Measure Range : ±180°

Tilt Resolution : 0.1°

Tilt Accuracy : <0.2°(Full Range)

Working Tempaccuracy : -40℃~+85℃

Pitch range : +/-85°

digital compass MTBF : ≥40000 hours/time

Production : IP67

Contact Now

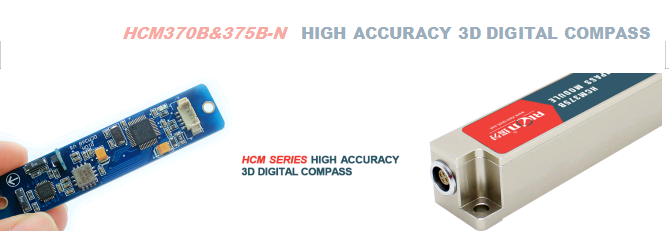

ROV underwater robot navigation High Precision 3D Elecrorninc Compass Sensor NMEA 0183 protocol

ROV Underwater Robot High Precision 3D Electrornic Compass Sensor NMEA 0183 Protocol

▶ MAIN FEATURE

★ Heading Accuracy: 0.5°

★ Roll Measure Range:±180°

★ Tilt Resolution: 0.1°

★ Tilt Accuracy: <0.2°(Full Range)

★ Working Temp.: -40℃~+85℃

★ Dimension: L111.5×W19.5×H19.5mm

★ With Hard And Soft Magnetic Calibration

★ Rs232/Rs485/Ttl Output

▶ APPLICATION

★ Satellite antenna search satellite

★ Marine navigation surveying and mapping

★ GPS integrated navigation

★ Antenna servo control

★ Infrared imager

★ Laser range finder

★ Map for plotter

★ ROV underwater robot navigation

★ Oceanography measurement instruments

★ Special occasion robot

HCM370B / HCM375B Index
Heading	Heading Accuracy	0.5° Tilt < 10°
		2.0° Tilt < 60°
		3.0° Tilt < 80°
	Resolution	0.1°
Tilt	Pitch Accuracy	0.1°<15° (Measure Range)
		0.1°<30°(Measure Range)
		0.1°<60°(Measure Range)
		0.2°<85°(Measure Range)
	Pitch Range	±85°
	Roll Accuracy	0.1°<15°(Measure Range)
		0.1°<30°(Measure Range)
		0.1°<60°(Measure Range)
		0.2°<180°(Measure Range)
	Roll Range	±180°
	Resolution	0.1°
Calibration	Hard Magnetic Calibration	Available
	Soft Magnetic Calibration	Available
	Magnetic Filed Interference Calibration Method	Rotate 360° Horizontally; Vertical Rotation(Optional)
	RS-232/RS485/TTL	5Pin Quick Plug Connector
Interface	Start Delay	<50ms
	Max Output Rate	20Hz/s
	Communication Rate	2400 TO 19200baud
	Output Format	Binary High Performance Protocol
Power Supply	Power Voltage	(Default)DC+5V
	Current(Max)	30ma
	Ideal Current	26ma
	Sleep Mode	TBD
Environment	Working Temp.	-40℃~+85℃
	Storage Temp.	-40℃~+100℃
	Anti-Shock Performance	100g
	Protection Level	IP67
Electromagnetic Compatibility	According TO EN61000 and BT17626
Mtbf	≥40000 Hour/Time
Insulation Resistance	≥100M.O.
Anit-Impact	100g@11ms,3Times/Axis(Half Sinusoid)
Anti--Shock	10grms,10～1000Hz
Dimension	L110×W19.5×H19.5mm
Weight	70g(Not Include Cable)

ROV Underwater Robot High Precision 3D Electrornic Compass Sensor NMEA 0183 Protocol

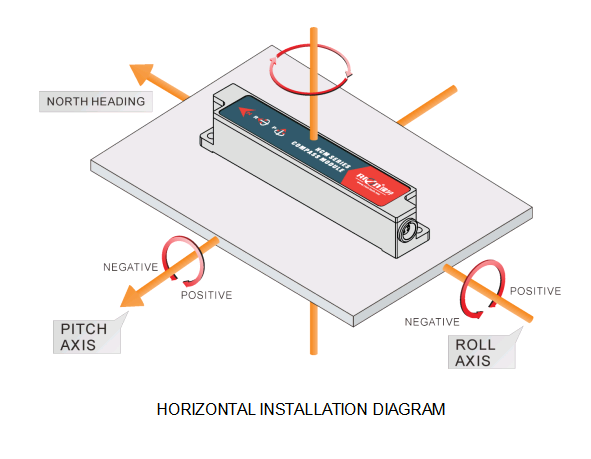

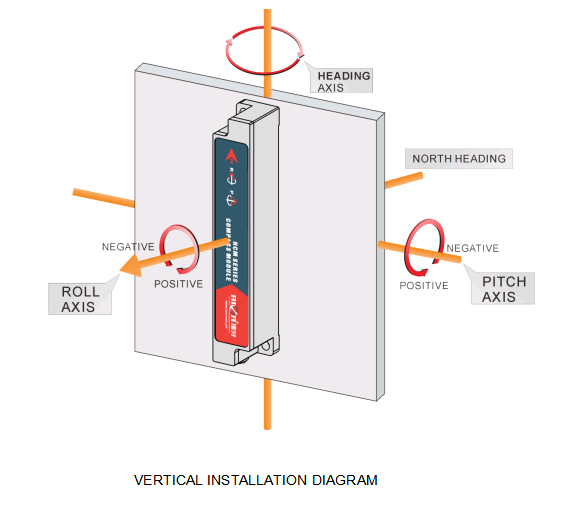

▶ MEASURING DIRECTIONS&FIX

ROV Underwater Robot High Precision 3D Electrornic Compass Sensor NMEA 0183 Protocol
