RS232 RS485 TTL Digital Accelerometer Vibration Sensor

  • 1
  • 2

Model Number : AKF394

Place of Origin : Guangdong, China

Brand Name : RION

Packaging Details : 1pcs/inner box, 100pcs/ctn

Supply Ability : 500 Piece/Pieces per month

Price : $246.00/Pieces >=1 Pieces

MOQ : 1

Payment Terms : T/T

Delivery Time : 1 weeks for sample

Certification : CE

Usage : acceleration and vibration measure

Output : RS232/RS485/TTL

Deviation Calibration : <1mg

Sensitivity (± 10%) : 1250mv/g

Nonlinearity : <0.5% FS（max）

Bandwidth (3DB) : 1000Hz

Contact Now

RS232 RS485 TTL Accelerometer Digital Vibration Sensor

▶ Application

★ wind power generation
★ Low frequency vibration and automatic monitoring

★ automobile

★ Large machinery, engine

★ armamentarium

★ bridge

★ road roller

▶ PRODUCT INTRODUCE

This acceleration series can be applied to various fields such as vibration testing and impact testing.The product adopts digital interface output, RS232/485/TTL optional, different address codes can be set, and multiple sensors can be used in series for long distances, which is convenient for multi-point measurement and data analysis. The AKF392B is a monocrystal line silicon capacitive sensor, consisting of a micromachined silicon chip,a low-power ASIC for signal conditioning,a microprocessor for storing compensation values and a temperature sensor.

▶ PRODUCT PARAMETER

AKF392TRS232 RS485 TTL Digital Accelerometer Vibration Sensor PARAMETER UNIT
Range ±2 ±4 ±8 ±10 ±20 ±40 g
Deviation Calibration <1 <1 <1 <1 <1 <1 mg
Measuring Axial X,Y,Z X,Y,Z X,Y,Z X,Y,Z X,Y,Z X,Y,Z Axial
Up/Off Power Repeatability <2 <2 <2 <2 <2 <2 mg(highest)
Deviation Temp. Coefficient 0.01 0.01 0.01 0.01 0.01 0.01 %/℃(Typical value)
Resolution/Threshold (@ 1Hz) < 1 < 1 < 1 < 1 < 1 < 1 mg(highest)
Nonlinearity <0.5 <0.8 <1 <1 <1 <1 % FS(highest)
Bandwidth (3Db) 500 500 500 500 500 500 Hz
Cross-axis sensitivity 1 1 1 2 2 2 %
Lateral vibration sensitivity ratio 1 1 2 5 5 5 %
Resonance frequency 2.4 2.4 2.4 5.5 5.5 5.5 kHz
68 protocol automatic output rate 5Hz,10Hz,25Hz,50Hz,100Hz,200Hz,500Hz,1000Hz
MODBUS automatic output rate 10Hz,25Hz,50Hz

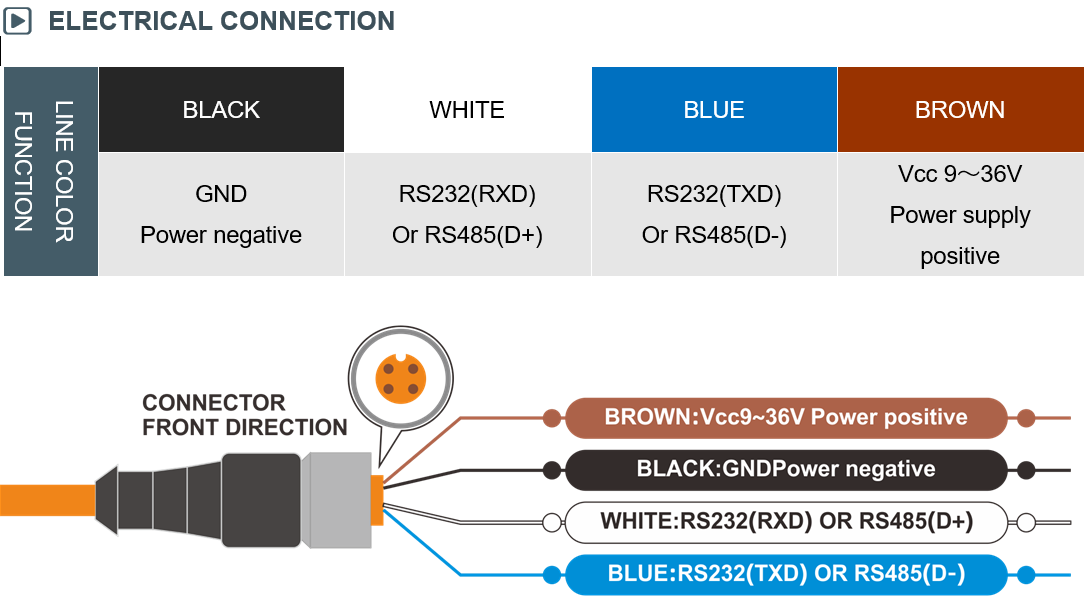

Output Interface RS232/RS485/TTL
Protocol Rion Standard Protocol And Modbus Rtu Protocol
Reliability MIL-HDBK-217,Grade 2
Shock Resistance 100g@11ms,3 Axial Direction (Half Sinusoid)
Recovery Time <1ms(1000g, 1/2 Sin 1ms,Shock Acting On The i Axis)
Vibrate 20g Rms,20~2000Hz (Random Noise ,o ,p,i Per Axis For Action 30 Minutes )
Input(Vdd_Vss) 9-36 VDC
Current Consumption <60mA @ 12 VDC
Connector Industry standard M12 connector
Weight Product net weight: 82g, magnetic base: 48g, L-shaped adapter plate 20g

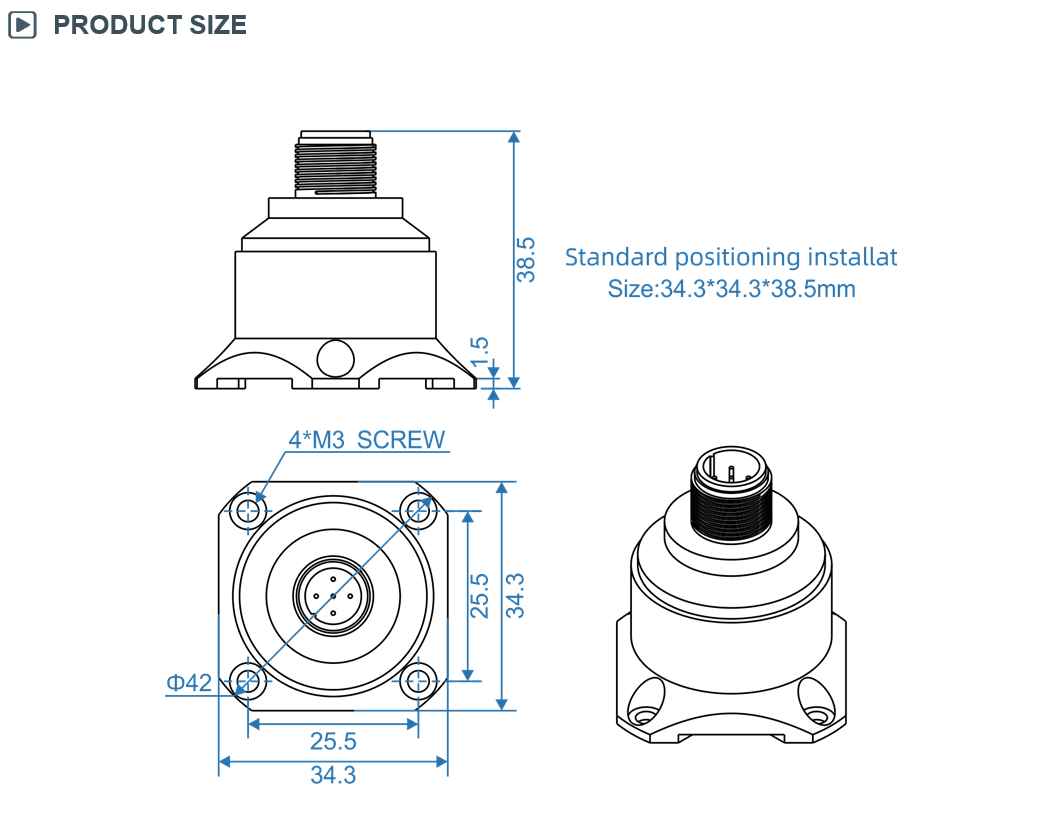

Dimension

Product size: 34.3*34.3*38.5mm

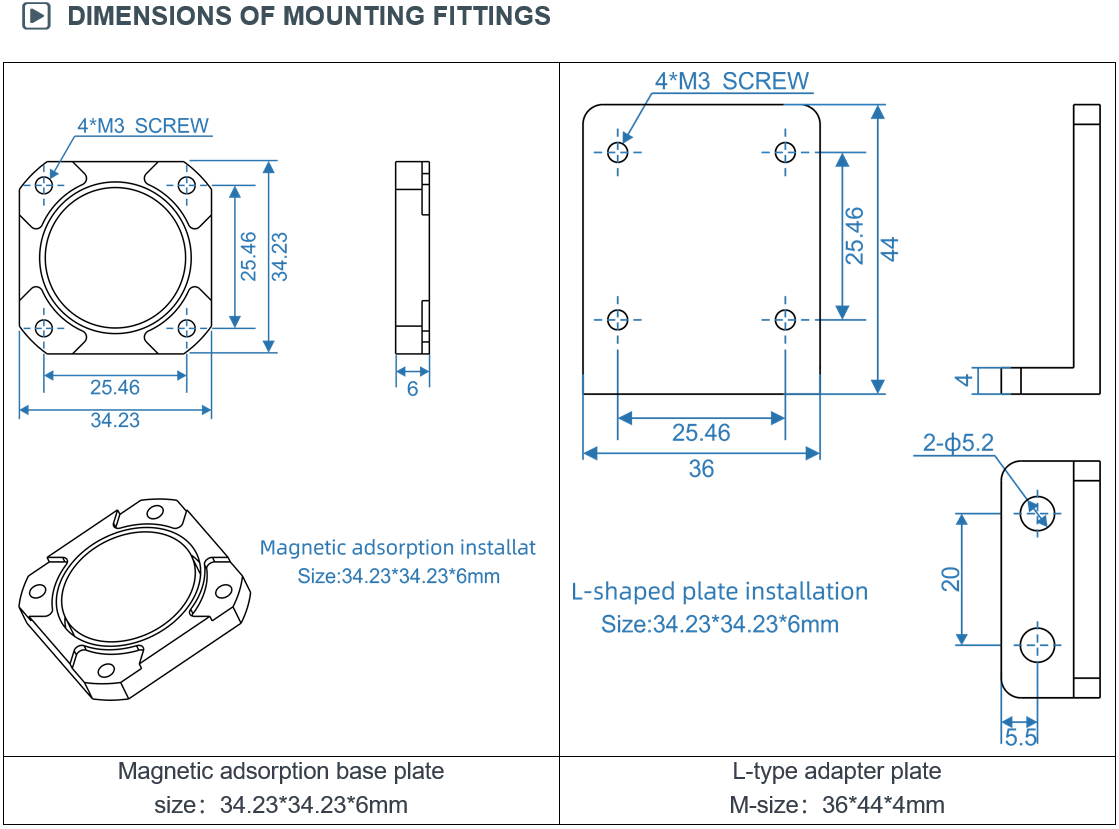

Magnetic adsorption base size: 34.23*34.23*6mm

L-shaped adapter plate size: 36*44*4mm

RS232 RS485 TTL Digital Accelerometer Vibration Sensor

RS232 RS485 TTL Digital Accelerometer Vibration Sensor

RS232 RS485 TTL Digital Accelerometer Vibration Sensor
