DDM360 IP67 Dynamic Magnometer Sensor / Yaw Angle Sensor For Ship Navigation

Name: DDM360 IP67 Dynamic Magnometer Sensor Yaw Angle Sensor For Ship Navigation
Brand: RION
Price: 99.00 USD

DDM360 IP67 Dynamic Magnometer Sensor / Yaw Angle Sensor For Ship Navigation Manufactures

Brand Name : RION

Model Number : DDM360-485

Certification : CE

Place of Origin : Guangdong, China

MOQ : 1

Price : $99.00 - $115.00/Pieces

Payment Terms : T/T, L/C

Supply Ability : 100000 Piece/Pieces per Month

Delivery Time : 5-10 work days

Packaging Details : 1pcs / inner box with sponge , 100pcs/ctn

name : yaw sensor

Output : RS232/RS485/TTL

dynamic compass Heading accuracy : 0.8deg

Resolution : 0.1°

Inclination accuracy : Dynamic 0.5°

Size : L55*W37*H24mm

Power supply : DC 9~36v

Protection class : IP67

Contact Now

DDM360 IP67 Dynamic Magnometer Sensor / Yaw Angle Sensor For Ship Navigation

DDM350B/360B		Parameter
Compass heading	Heading accuracy	0.8°
	Resolution	0.1°
	Pitch range	±90°
	Roll range	±180°
	Inclination accuracy	Static state 0.2°
	Inclination accuracy	Dynamic 0.5°
	Resolution	0.1°
	Tilt compensation angle range	Roll ±180°
	Tilt compensation angle range	Pitch ＜85°
Calibration	Hard iron calibration	yes
	Soft iron calibration	yes
	Magnetic field interference calibration method	One rotation of the plane (two-dimensional calibration)
Physical feature	Size	Shell size:L55×W37×H24mm
	Size	PCBA size: L33×W27×H9mm

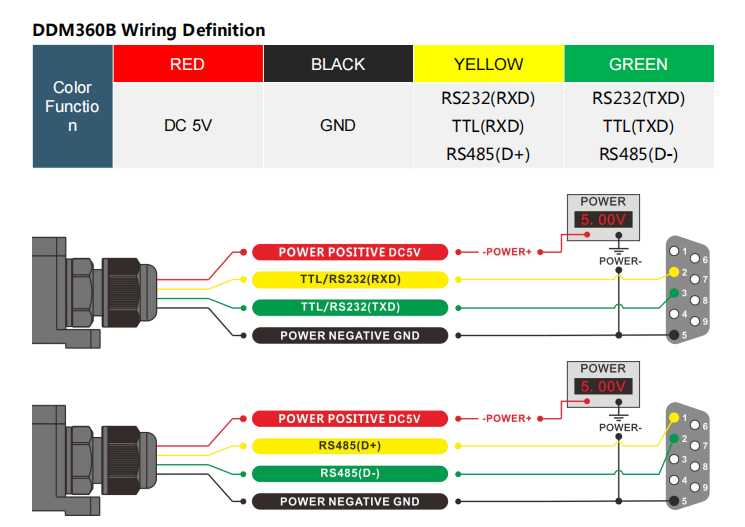

	RS232/RS485/TTL Interface connection line	Shell : 4PIN 1m direct lead
	RS232/RS485/TTL Interface connection line	Single-board : 4 PIN 30cm terminal wire
Interface	Startup delay	<50ms
	Output rate	5~100Hz(settable)
	Baud rate	4800到115200baud
	Output format	Binary high performance protocol
Power	Supply voltage	(Default) DC +5V
	Supply voltage	(Customized) DC 9～36V
	Current (MAX)	45mA
	Ideal model	35mA
	Sleep mode	TBD
Environment	Operating range	-40℃～+85℃
	Storage temperature	-40℃～+85℃
	Vibration resistance	2500g
EMC	According to EN61000 and GBT17626
MTBF	≥98000 hours/time
Insulation resistance	≥100 megohm
Impact resistance	100g@11ms,3 Axial Direction (Half Sinusoid)
Anti-vibration	10grms,10～1000Hz
Weight	Single board: ≤25g Enclosure: ≤135g (including 1 meter cable)

▶ MAIN FEATURES

★ Inclination angle measurement range: pitch ±85°, roll angle +/-180°

★ With hard magnetic, soft magnetic and tilt angle compensation

★ Standard RS232/RS485/TTL output interface

★ Azimuth angle accuracy: 0.8°

★ Inclination resolution: 0.1°

★ Inclination accuracy: 0.2°

★ Wide temp. range: -40℃～+85℃

★ Dimesion: L55×W37×H24mm

★ DC 5V power supply

★ IP67 waterproof rating

DDM360 IP67 Dynamic Magnometer Sensor / Yaw Angle Sensor For Ship Navigation

Software Configure :

Product Tags:

Dynamic Magnometer Sensor

IP67 Magnometer Sensor

IP67 Yaw Angle Sensor
